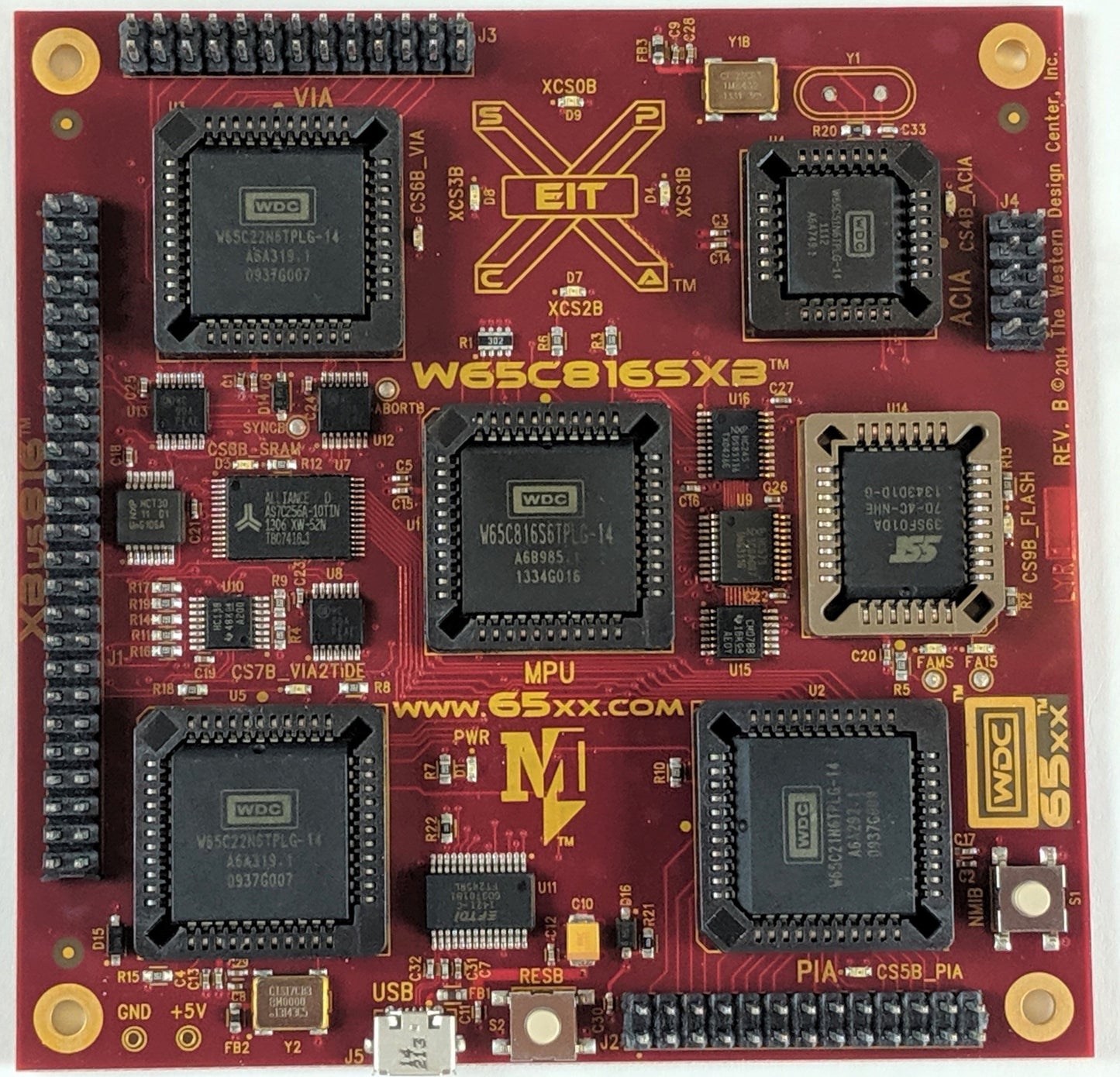

Simple microcomputer board from the trusted source of the 6502 microprocessor family. This board helps you learn and develop with WDC's W65C816S, W65C21, W65C22, and W65C51N chip products.
Features:
- W65C816S MPU running at 8MHz. Powered by micro USB connector (cable not included).
- External Memory Bus with expansion connector
- 32KBytes SRAM
- 128KBytes FLASH ROM
- 2 x W65C22 VIA with one VIA Expansion Port
- 1 x W65C21 PIA with PIA Expansion Port
- 1 x W65C51N ACIA with ACIA Expansion Port
- USB Programmer’s port
