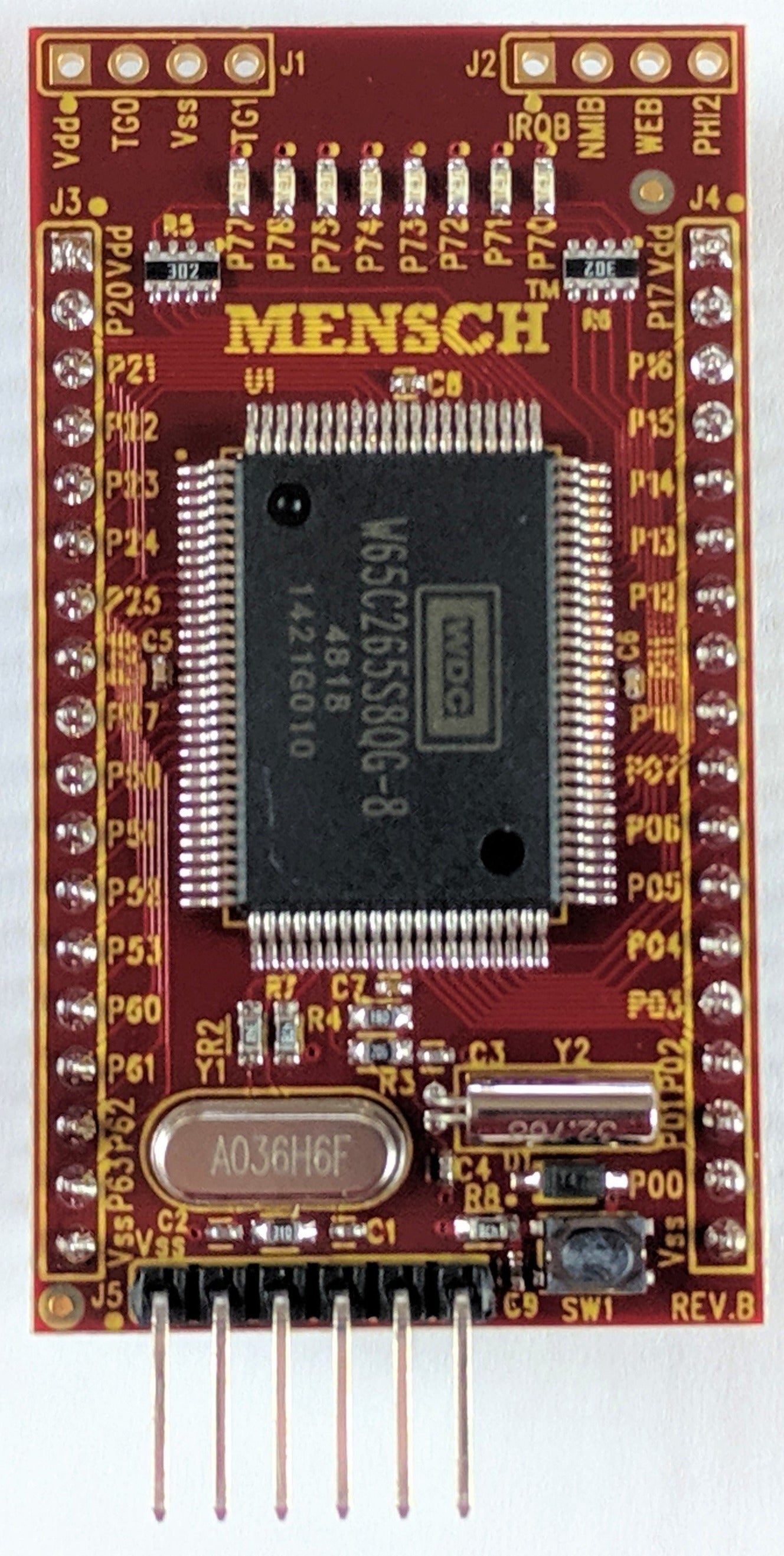

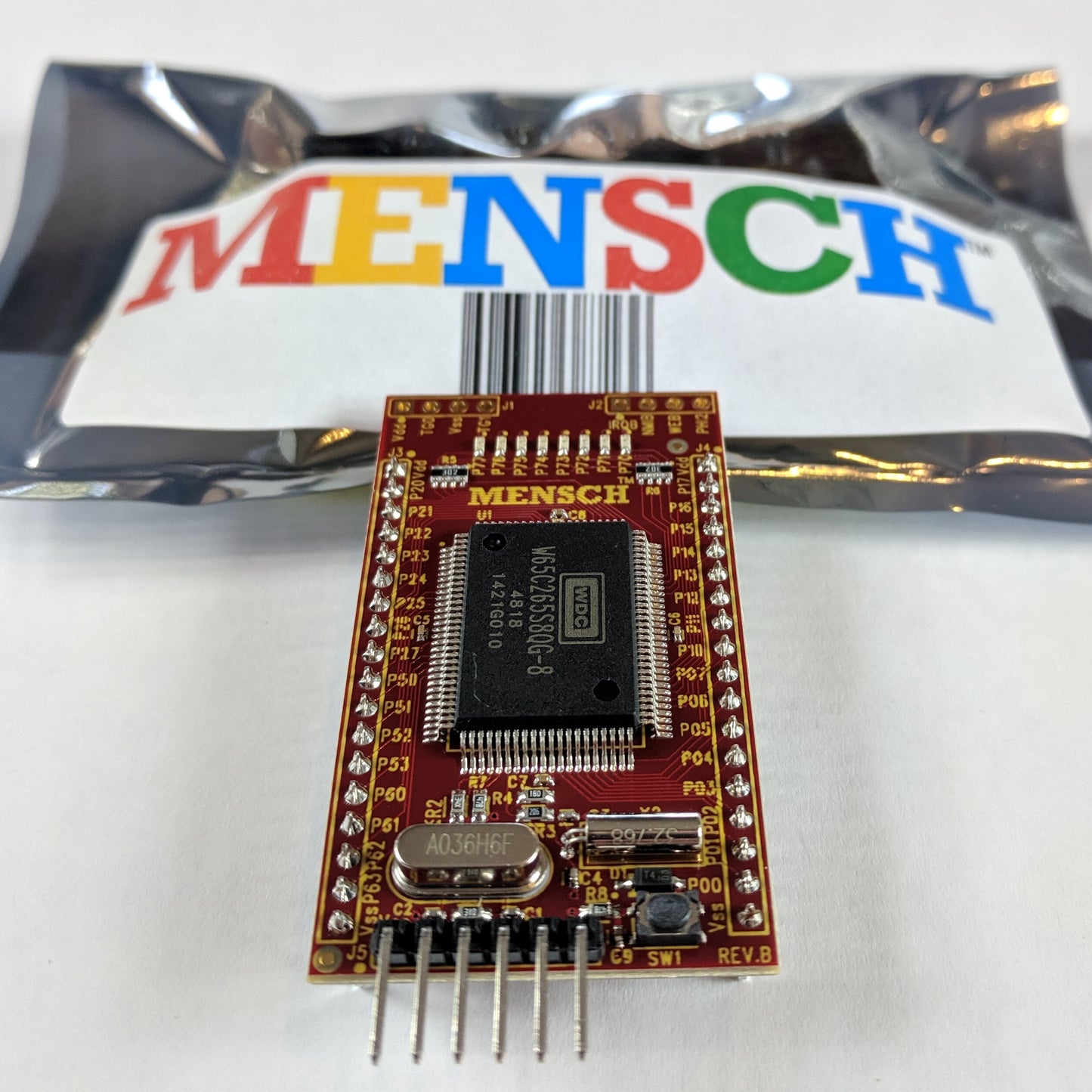

Simple microcomputer board from the trusted source of the 6502 microprocessor family. This board helps you learn and develop with WDC's W65C265S chip.
- W65C265S MCU operating at 3.6864 MHz; Works at 3.3V or 5V

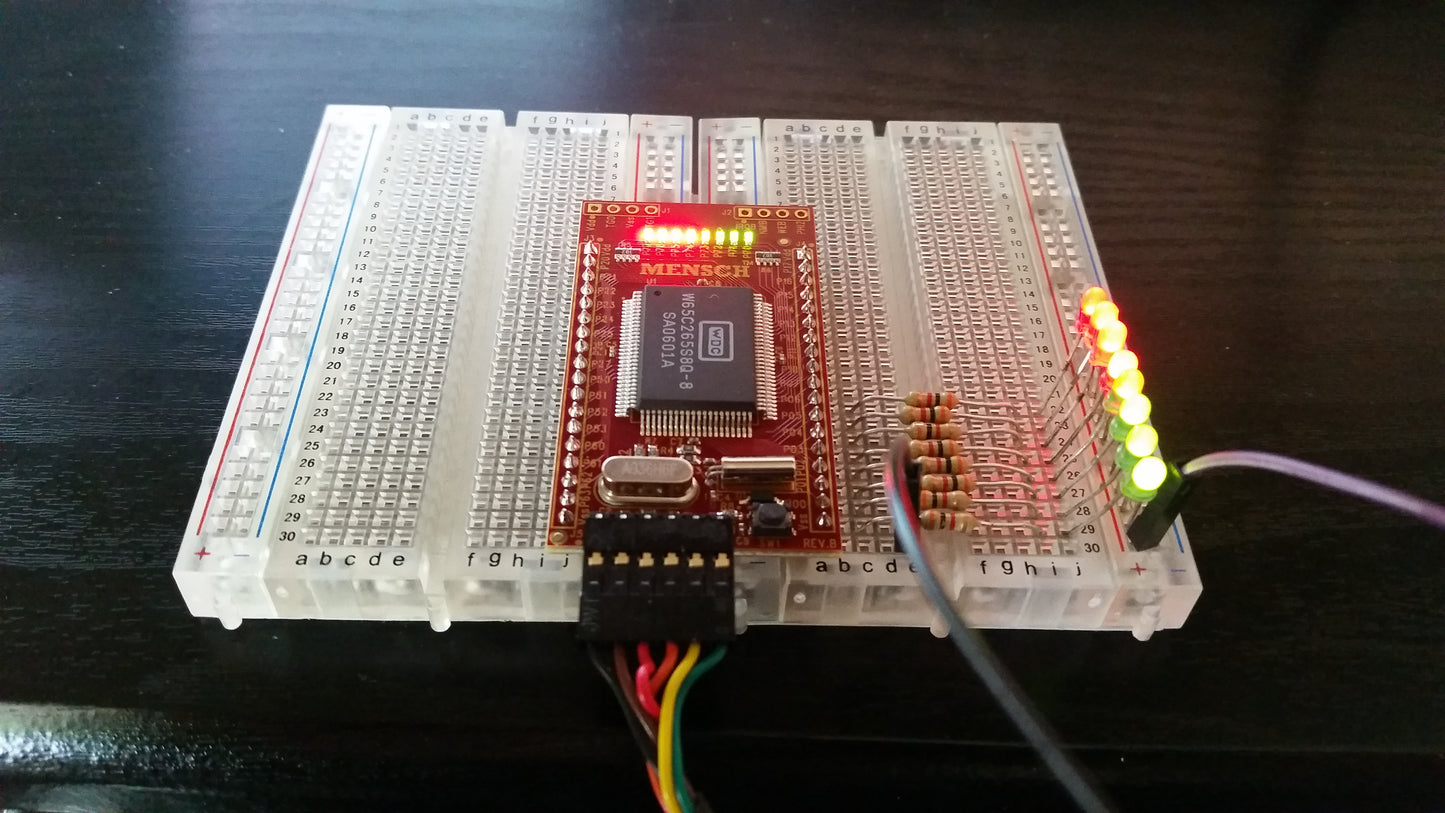

- 2 – 18 pin connectors plug into standard breadboards for quick prototyping. Signals accessed are Ports P0x (A0-A7), P1x(A8-A15), P3x (D0-D7), Serial Ports S0 and S1 (Not populated).
- 8 LEDs connected to P7x
- 1 x 4 pin Connector with PHI2, WEB, NMIB and IRQB signals for expansion (Not populated).
- 1 x 4 pin Twin Tone Generator Connector (Driven by TG0/1) (Not populated)
- Serial Programmer’s Port NOTE: Requires external FTDI FT232 or similar serial cable/board (not included)
