W65C02SXB - 6502 Educational and Development Board

W65C02SXB - 6502 Educational and Development Board

Regular price $65.02 USD
Regular price Sale price $65.02 USD
Sale Sold out

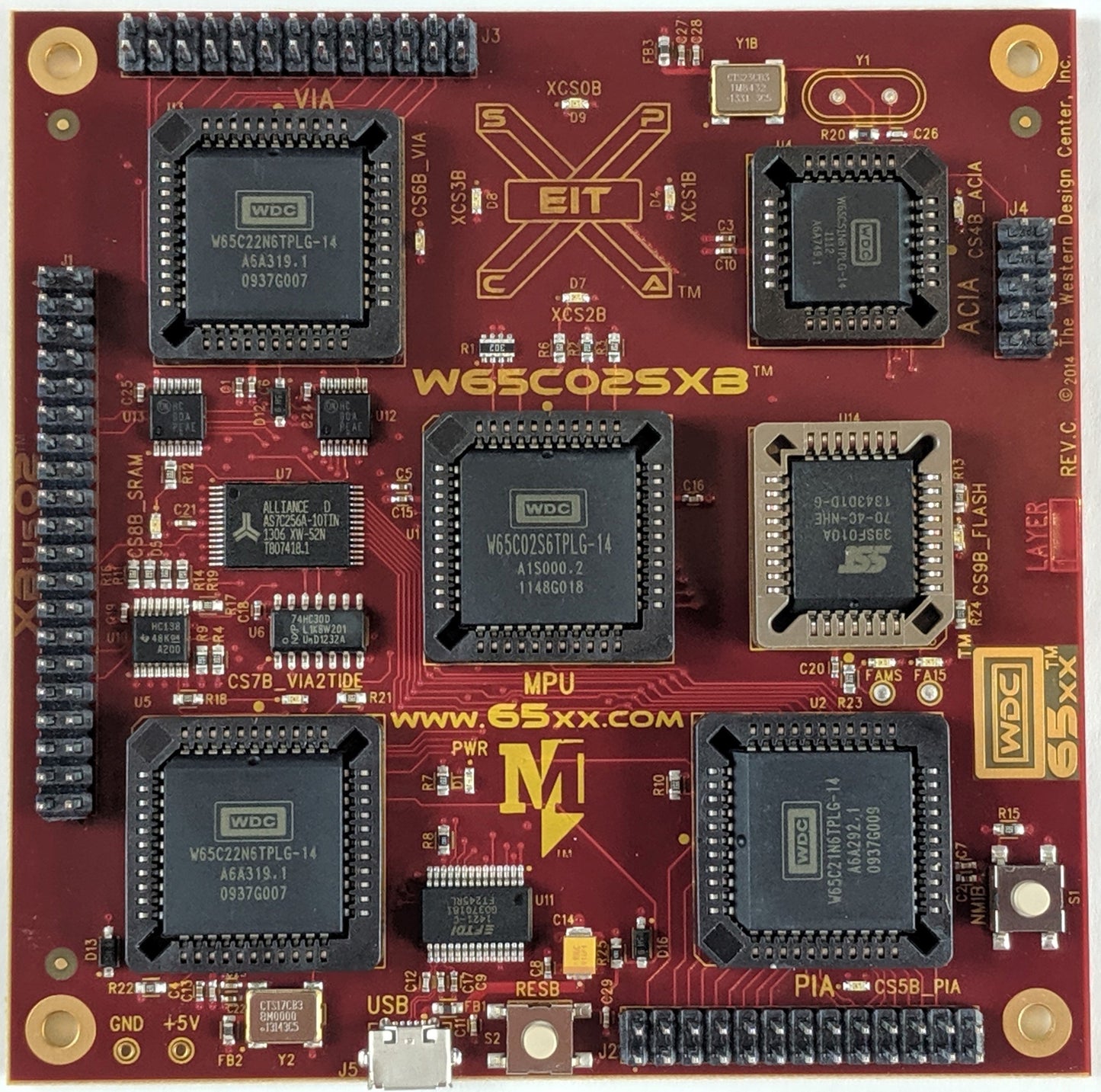

Simple microcomputer board from the trusted source of the 6502 microprocessor family.  This board helps you learn and develop with WDC's W65C02S, W65C21, W65C22, and W65C51N chip products.

Features:

  • W65C02S (6502) MPU running at 8MHz.  Powered by micro USB connector (cable not included).
  • External Memory Bus with expansion connector
  • 32KBytes SRAM
  • 128KBytes FLASH ROM (Split into 4x 32KB Banks)
  • 2 x W65C22N VIA with one VIA Expansion Port
  • 1 x W65C21 PIA with PIA Expansion Port
  • 1 x W65C51N ACIA with ACIA Expansion Port
  • USB Programmer’s port
