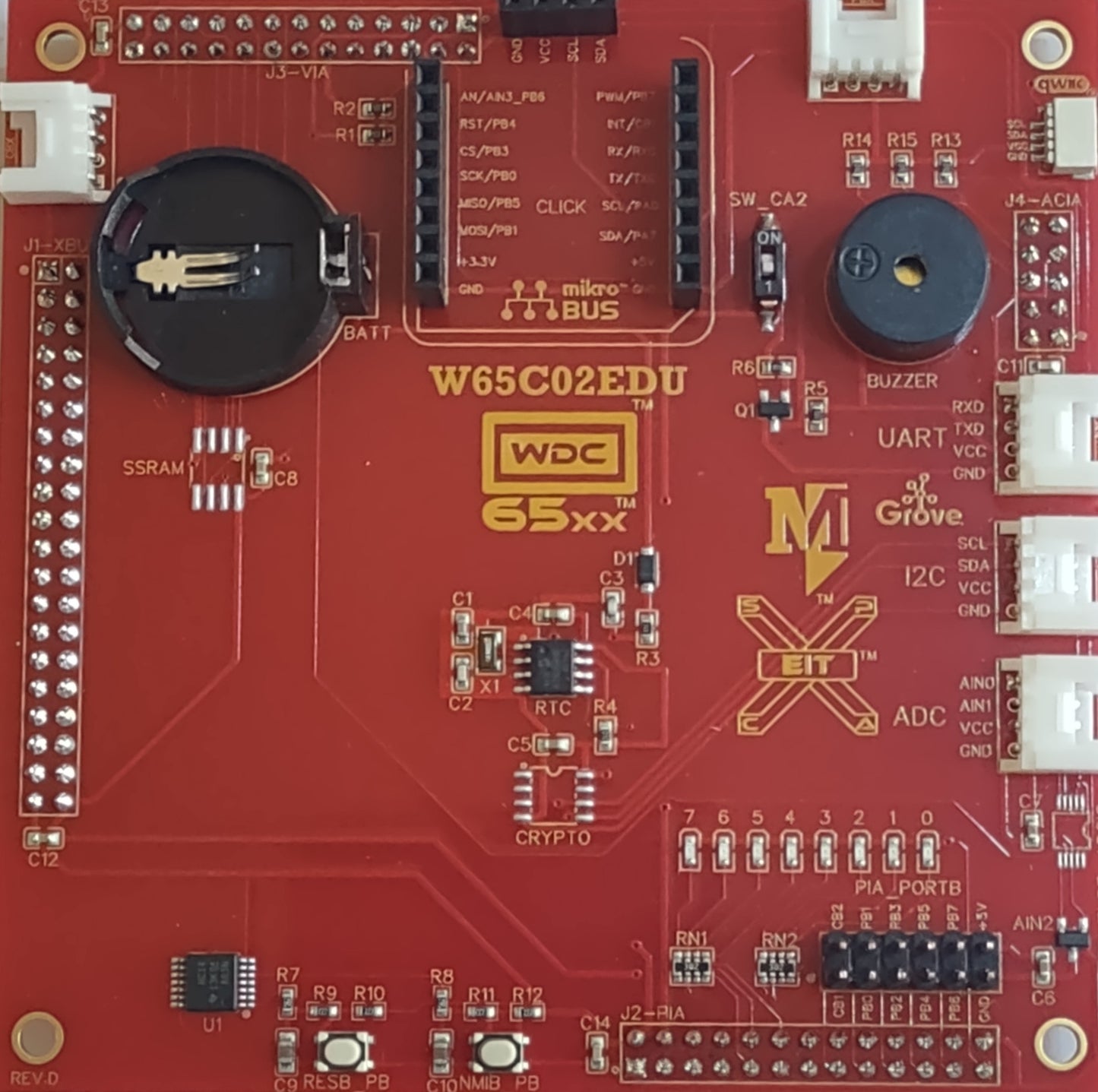

The W65C02EDU is an add-on board for the W65C02SXB, providing access to I2C, SPI, ACIA/UART protocols and SEEED Studio Grove, Sparkfun QWIIC, and MikroElectronics Click Boards. You must have a W65C02SXB board for this to work as intended.
- Designed for W65C02SXB; 6502 Based Development Board / Single Board Computer
- All IO pins are 5.0V; same compatibility as W65C02SXB.
- 1x SparkFun QWIIC® connector for I2C module expansion
- 5x Seeed Studio Grove connectors for I2C, UART, Analog, and I/O (CB1/2, PB6/7) expansion
- MikroElektronika mikroBUS Click Board connector for I2C, UART, SPI, ADC, PWM, and I/O expansion
- 1x I2C Connector for I2C OLED or other general I2C modules
- CR2032 3.3V Battery holder for Real-Time Clock and Serial SRAM. Note: battery not included with the board due to shipping restrictions.
- Active Passive Buzzer with toggle switch (Controlled by VIA CA2)
- MCP79411 Real Time Clock
- ATECC608A CryptoAuthentication™ *** Currently unpopulated due to manufacturing availability
- 23LCV1024 – 128KB Serial SRAM with battery backup (SPI) *** Currently unpopulated due to manufacturing availability
- ADS1015 ADC and MCP9700 Temp Sensor *** Currently unpopulated due to manufacturing availability
