WDC6502, WDC, The Western Design Center, Inc.

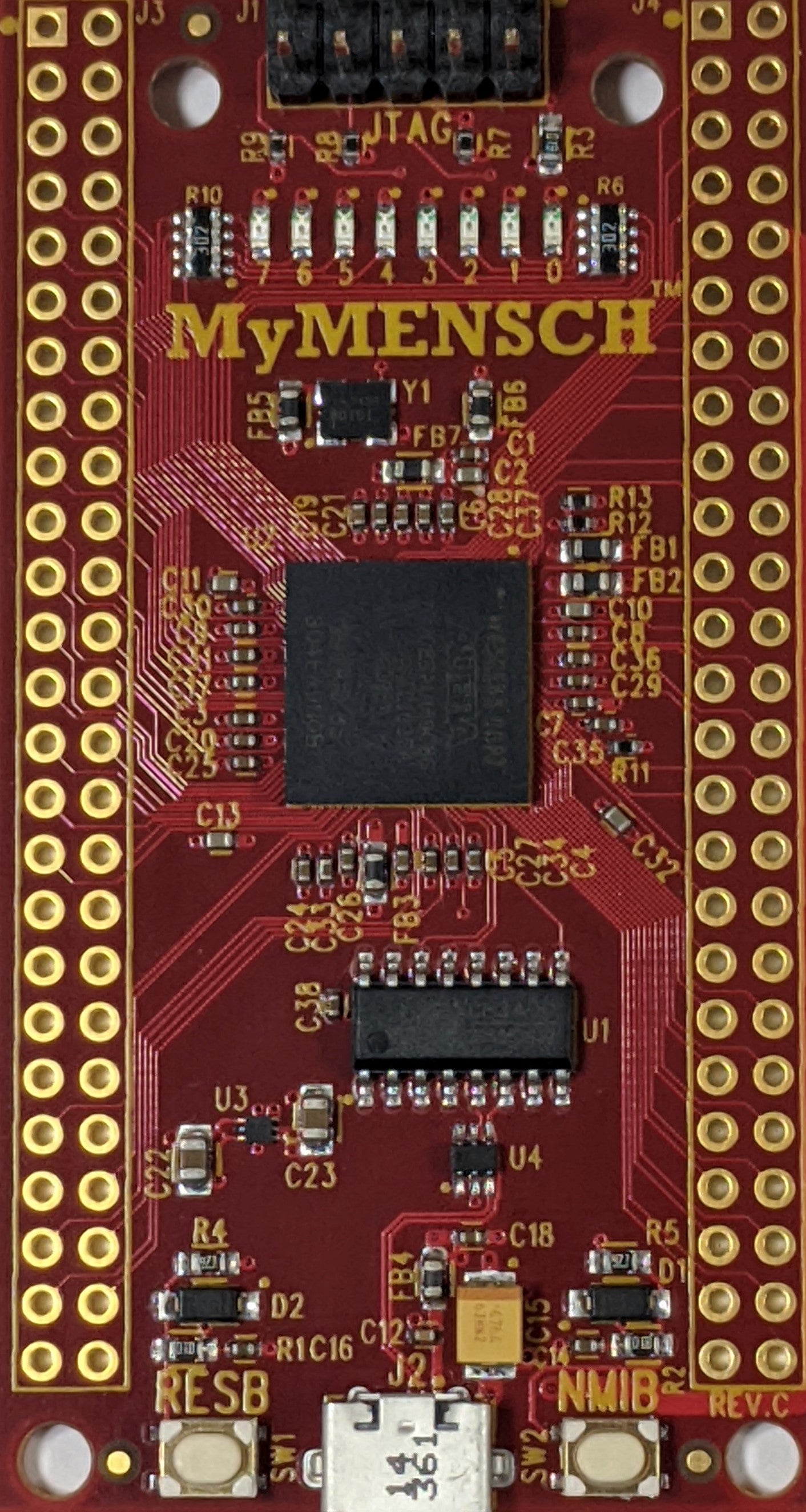

MyMENSCH Rev-C - FPGA Based Board for Learning and Development with the 6502 / 65816Microprocessor Family
MyMENSCH Rev-C - FPGA Based Board for Learning and Development with the 6502 / 65816Microprocessor Family
Regular price
$75.02 USD
Regular price
Sale price
$75.02 USD
Unit price
/
per
Couldn't load pickup availability
Intel MAX10 FPGA-based microcomputer board from the trusted source of the 6502 microprocessor family. This board helps you learn and develop with WDC's line of 6502 and 65816 FPGA Microcontrollers.
- MAX10M08SA or MAX10M16SA FPGA with 3.3V IO; Board powered from 5.0V USB supply
- Preprogrammed with WDC 6502 based FPGA Microcontroller design running at 14.7456 MHz
- JTAG port for test, debug, FLASH memory, and programmable logic
- USB Programmer’s port (CH240)
- 87 IO and 8 x LEDs GPIO pins
